200811 Spring MVC를 이용한 블로그 시스템 1.0

Spring MVC를 이용한 블로그 시스템입니다.

코드는 깃허브에서 확인하실 수 있습니다.

https://github.com/Heegene/personal_projects/tree/master/spring_blog

Heegene/personal_projects



<개발 환경>

개발언어: Java8

WAS: Apache Tomcat 8.5

프레임워크: Spring 4.3.5

SQL 연동: Mybatis 3.4.6

Front: Bootstrap

Editor: CKeditor5





<구현 기능>

-. 게시글, 댓글 CRUD(Create, Read, Update, Delete)

-. CKEditor를 사용한 게시글 서식 지정

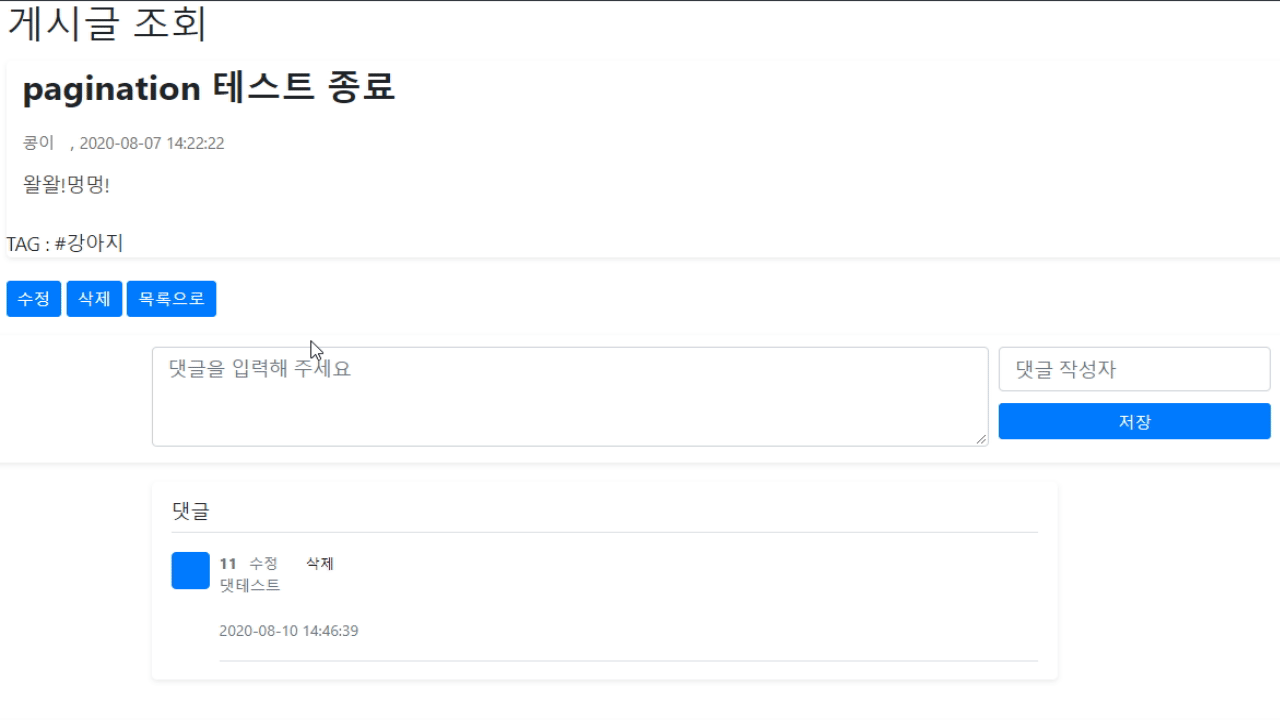

에디터를 사용한 글 작성 및 내용 확인



댓글 작성 및 확인

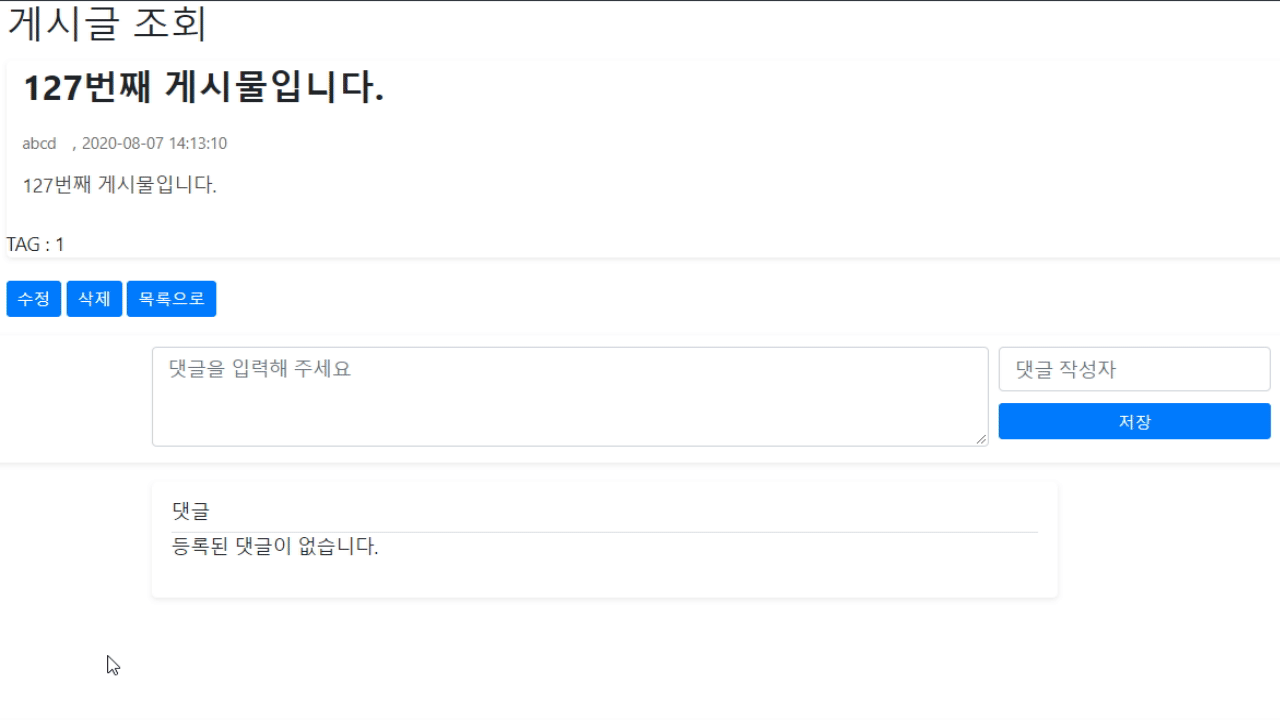

게시글, 댓글 삭제

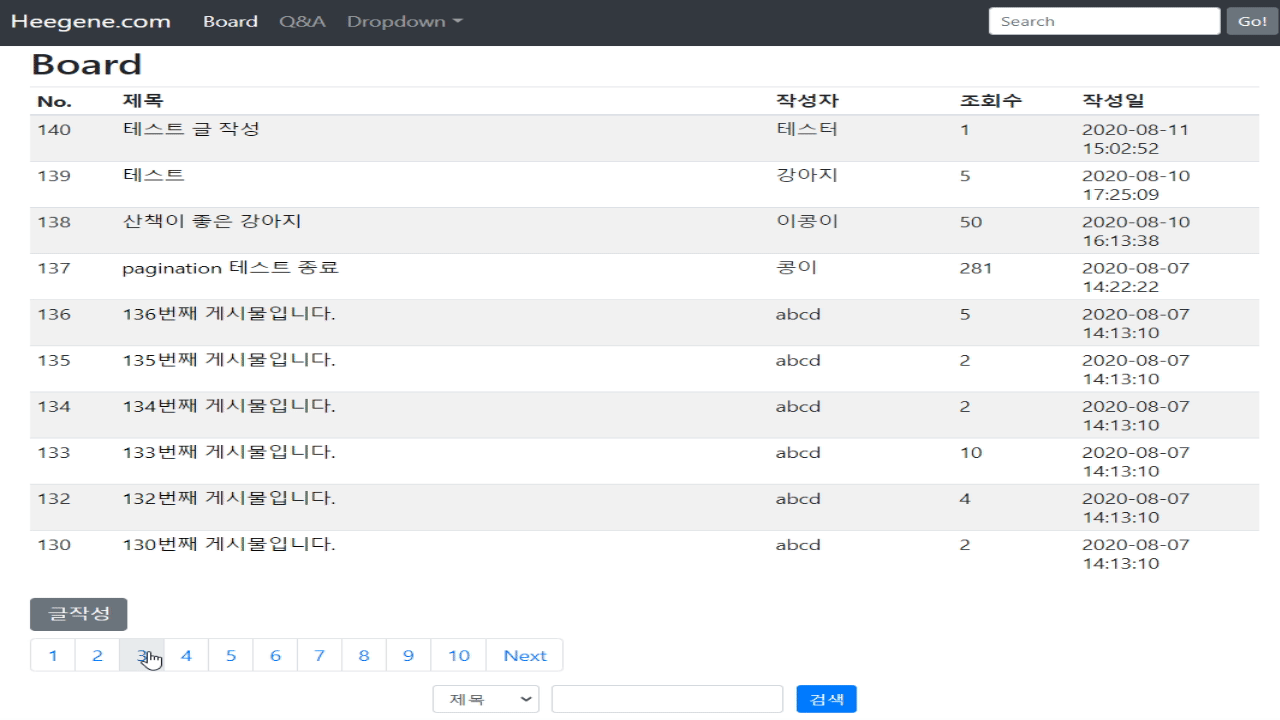

-. 게시글 검색 기능

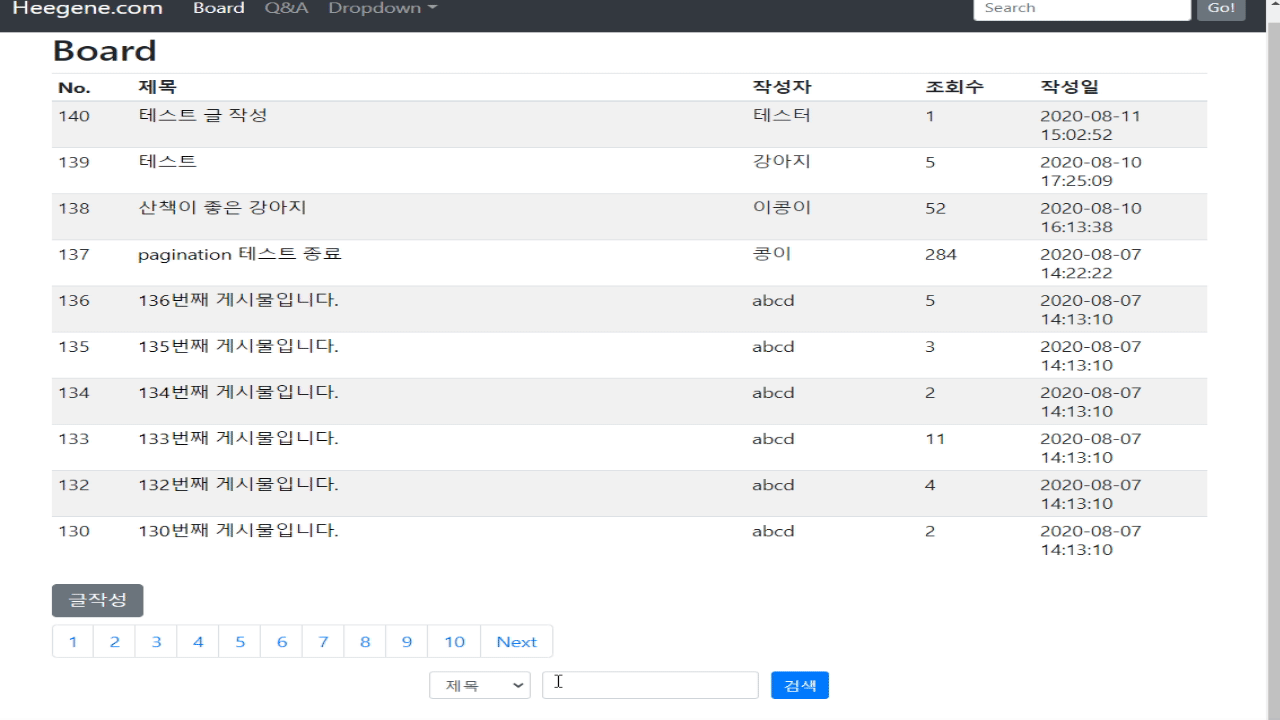

게시글 검색(게시판 검색창, 상단바 검색창)

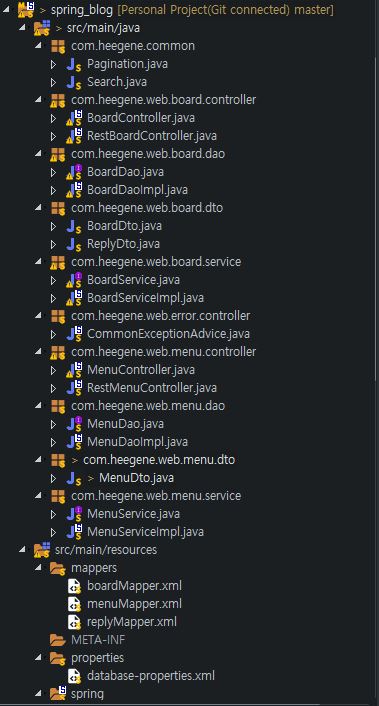

package 구조

<Controller>



package com.heegene.web.board.controller;


import javax.inject.Inject;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.mvc.support.RedirectAttributes;

import com.heegene.common.Pagination;
import com.heegene.common.Search;
import com.heegene.web.board.dto.BoardDto;
import com.heegene.web.board.dto.ReplyDto;
import com.heegene.web.board.service.BoardService;

@Controller
@RequestMapping(value="/board")
public class BoardController {

    @Inject
    private BoardService boardService;

    @RequestMapping(value="/getBoardList", method = RequestMethod.GET)
    public String getBoardList(Model model,
                               @RequestParam(required=false, defaultValue = "1") int page,
                               @RequestParam(required=false, defaultValue = "1") int range,
                               @RequestParam(required=false, defaultValue = "title") String searchType,
                               @RequestParam(required=false) String keyword,
                               @ModelAttribute("search") Search search
                                            ) throws Exception {

        model.addAttribute("search", search);
        search.setSearchType(searchType);
        search.setKeyword(keyword);

        // 전체 게시글 수
        int listCnt = boardService.getBoardListCnt(search);

        search.pageInfo(page, range, listCnt);

        model.addAttribute("pagination", search);
        model.addAttribute("boardList", boardService.getBoardList(search));
        return "board/index";
    }



    // 글쓰기 클릭 시 호출할 부분
    @RequestMapping(value="/boardForm")
    public String boardForm(@ModelAttribute("boardDto") BoardDto boardDto) {
        return "board/boardForm";
    }

    // 글을 쓰고 저장할 때 호출할 부분(글 목록으로 돌아가도록)
    @RequestMapping(value="/saveBoard", method = RequestMethod.POST)
    public String saveBoard(@ModelAttribute("boardDto") BoardDto boardDto,@RequestParam("mode") String mode, RedirectAttributes rttr) throws Exception {
        if (mode.equals("edit")) {
            boardService.updateBoard(boardDto);
        } else {
            boardService.insertBoard(boardDto);
        }

        return "redirect:/board/getBoardList";

    }

    @RequestMapping(value = "/getBoardContent", method=RequestMethod.GET)
    public String getBoardContent(Model model, @RequestParam("bid") int bid) throws Exception {
        model.addAttribute("boardContent", boardService.getBoardContent(bid));
        model.addAttribute("replyDto", new ReplyDto());

        return "board/boardContent";
    }

    @RequestMapping(value = "/editForm", method=RequestMethod.GET)
    public String editForm(@RequestParam("bid") int bid,
                           @RequestParam("mode") String mode,
                           Model model) throws Exception {
        model.addAttribute("boardContent", boardService.getBoardContent(bid));
        model.addAttribute("mode", mode);
        model.addAttribute("boardDto", new BoardDto());

        return "board/boardForm";
    }

    @RequestMapping(value = "/deleteBoard", method=RequestMethod.GET)
    public String deleteBoard(RedirectAttributes rttr, @RequestParam("bid") int bid) throws Exception {
        boardService.deleteBoard(bid);
        return "redirect:/board/getBoardList";
    }




}


<Service>



package com.heegene.web.menu.service;

import java.util.List;

import javax.inject.Inject;

import org.springframework.stereotype.Service;

import com.heegene.web.menu.dao.MenuDao;
import com.heegene.web.menu.dto.MenuDto;

@Service
public class MenuServiceImpl implements MenuService {

    @Inject
    private MenuDao menuDao;

    @Override
    public List<MenuDto> getMenuList() throws Exception {
        return menuDao.getMenuList();
    }

    @Override
    public void saveMenu(MenuDto menuDto) throws Exception {
        menuDao.saveMenu(menuDto);
    }

    @Override
    public void updateMenu(MenuDto menuDto) throws Exception {
        menuDao.updateMenu(menuDto);
    }

    @Override
    public void deleteMenu(String code) throws Exception {
        menuDao.deleteMenu(code);
    }
}


<Mapper>

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE mapper
 PUBLIC "-//mybatis.org/DTD Mapper 3.0//EN"
 "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.heegene.web.board.boardMapper">
    <select id="getBoardList"
        resultType="com.heegene.web.board.dto.BoardDto" >
        <![CDATA[
            SELECT *
            FROM (SELECT ORG.*, ROWNUM AS "RNUM" FROM
                            (SELECT * FROM tbl_board ORDER BY BID DESC) "ORG") "A"
            WHERE A.RNUM >= #{startList, jdbcType=INTEGER} AND rownum <= #{listSize, jdbcType=INTEGER}
            ]]>
            <include refid="search"></include>
    </select>

     <sql id="search">
          <if test="searchType=='title' and keyword != null">
             AND title LIKE '%'||#{keyword}||'%'
         </if>
         <if test="searchType=='Content' and keyword != null">
             AND content LIKE '%'||#{keyword}||'%'
         </if>
         <if test="searchType=='reg_id' and keyword != null">
             AND reg_id LIKE '%'||#{keyword}||'%'
         </if>

     </sql>



     <select id="getBoardContent" resultType="com.heegene.web.board.dto.BoardDto">
         SELECT
                 bid,
                 cate_cd,
                 title,
                 content,
                 tag,
                 view_cnt,
                 reg_id,
                 reg_dt,
                 edit_dt
         FROM tbl_board
         WHERE   bid = #{bid}
     </select>

     <insert id="insertBoard" parameterType="com.heegene.web.board.dto.BoardDto">
         INSERT INTO tbl_board
                     (
                      cate_cd,
                      title,
                      content,
                      tag,
                      view_cnt,
                      reg_id,
                      reg_dt,
                      edit_dt
                     )

                     VALUES
                     (
                       '해당없음'
                      , #{title}
                      , #{content}
                      , #{tag}
                      , 0
                      , #{reg_id}
                      , sysdate
                      , sysdate
                     )
     </insert>

     <update id="updateBoard" parameterType="com.heegene.web.board.dto.BoardDto">
         UPDATE tbl_board SET
                        title = #{title}
                     , content = #{content}
                     , tag = #{tag}
                     , edit_dt = sysdate
         WHERE
                     bid = #{bid}
     </update>

    <delete id="deleteBoard" parameterType="int">
        DELETE FROM tbl_board
        WHERE bid = #{bid}
    </delete>

    <update id="updateViewCnt" parameterType="com.heegene.web.board.dto.BoardDto">
        UPDATE tbl_board SET
                view_cnt = view_cnt + 1
        WHERE   bid = #{bid}
    </update>


    <select id="getBoardListCnt" resultType="int">
        SELECT count(*) AS listCnt
        FROM tbl_board
        <include refid="searchCnt"></include>
    </select>


    <sql id="searchCnt">
         <if test="searchType=='title' and keyword != null">
             WHERE title LIKE '%'||#{keyword}||'%'
         </if>
         <if test="searchType=='Content' and keyword != null">
             WHERE Content LIKE '%'||#{keyword}||'%'
         </if>
         <if test="searchType=='reg_id' and keyword != null">
             WHERE reg_id LIKE '%'||#{keyword}||'%'
         </if>

     </sql>





 </mapper>









Spring MVC를 이용한 블로그 시스템입니다.

MVC 패턴이 익숙해질까? 했는데 치고 또 치니까 숨쉬듯 쳐지는 걸 보니, 역시 답은 계속 쳐보는 것 뿐입니다.



추가 개선 예정사항은 Spring Security 구현과 회원관리/게시판 관리 등 관리메뉴 추가입니다.



이상입니다.
